In our previous articles, we’ve discussed the motor systems of electric bicycles, and today, we’re shifting focus to the essential component that powers them — the battery. Understanding the battery’s role, its specifications, and how to choose the right one is crucial for both performance and longevity of your e-bike. So, let’s dive into the details of electric bicycle batteries.

Battery Quality and Positioning

From the bulky lead-acid batteries of the past to today’s lithium-ion batteries, the evolution in electric bicycle battery technology has brought significant improvements. Lithium-ion batteries are now the standard, offering advantages such as lighter weight, higher capacity, and longer lifespan.

The quality and performance of a battery depend heavily on several key terms: voltage, capacity, energy, cell type, battery pack, and Battery Management System (BMS).

Key Battery Terms: Voltage, Capacity, and Energy

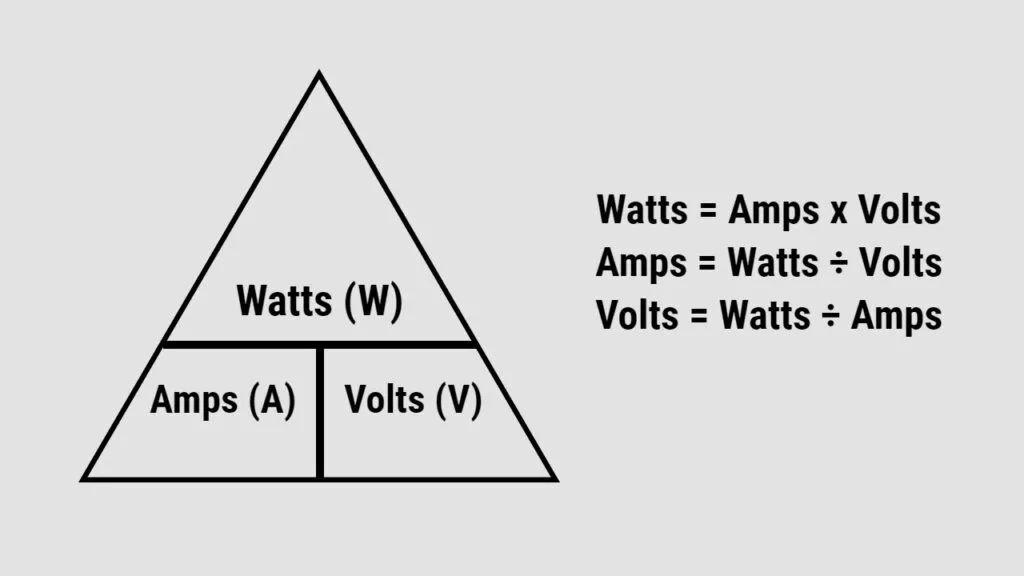

The voltage of most electric bicycle batteries ranges from 36V to 48V, with the capacity typically measured in amp-hours (Ah). To calculate the total energy of the battery, we use the formula: Energy (Wh)=Capacity (Ah)×Voltage (V)\text{Energy (Wh)} = \text{Capacity (Ah)} \times \text{Voltage (V)}Energy (Wh)=Capacity (Ah)×Voltage (V)

For example, if a battery has a voltage of 36V and a capacity of 13.6Ah, the total energy would be:13.6×36=489.6Wh(≈0.5kWh)13.6 \times 36 = 489.6 \text{Wh} \quad (\approx 0.5 \text{kWh})13.6×36=489.6Wh(≈0.5kWh)

This is roughly equivalent to half a kilowatt-hour, which can provide a significant amount of range for your electric bike, depending on factors such as terrain and riding style.

Battery Cells, Packs, and BMS

What we typically refer to as the “battery” of an e-bike is actually the battery pack, which consists of many individual cells and a Battery Management System (BMS). The cell is the basic unit of the battery, and its quality plays a pivotal role in determining overall performance. The most common type of cell used in e-bikes is the 18650 lithium-ion cell (with a diameter of 18mm and length of 65mm). These cells are known for their long lifespan, high energy density, and stable performance.

To ensure the battery operates at optimal efficiency, a BMS is used to monitor the health of each cell, manage charging and discharging cycles, and prevent overcharging or deep discharge, thus extending the overall lifespan of the battery.

How to Choose an Electric Bike Battery

Now that we have an understanding of the technical terms, let’s focus on what to look for when selecting a battery for your electric bicycle. The primary considerations are:

1. Price: Higher-quality batteries generally come with a higher price tag. Opt for well-known brands like Samsung, LG, or Panasonic, which are industry leaders in battery cell manufacturing. These brands offer robust quality assurance and after-sales support, ensuring you get a reliable and long-lasting battery.
2. Battery Composition: While lithium-ion is the most common type of battery used in e-bikes, it’s important to note that lithium-ion encompasses different chemical compositions. Two of the most widely used types are NMC (Nickel Manganese Cobalt) and LFP (Lithium Iron Phosphate). Both of these offer good stability, but LFP is particularly known for its safer operation and longer cycle life, making it a popular choice in markets like Australia where safety and durability are paramount.
3. Weight and Volume: Many e-bike riders desire larger capacity batteries for longer range, but larger batteries can also increase the overall weight of the bike. In some cases, a larger battery may result in a cumbersome riding experience. It’s important to choose a battery that strikes the right balance between range and weight. Efficient use of pedal-assist levels and gear shifting can help you conserve battery life and extend your range without needing an overly large battery.
4. Battery Placement: Large batteries add significant weight, and many manufacturers place them between the wheels to maintain a balanced center of gravity. Another consideration is whether the battery is internal or external. Internal batteries tend to be sleeker, contributing to a more aesthetically pleasing bike frame, which is a factor many Australian riders take into account, especially for urban commuters.

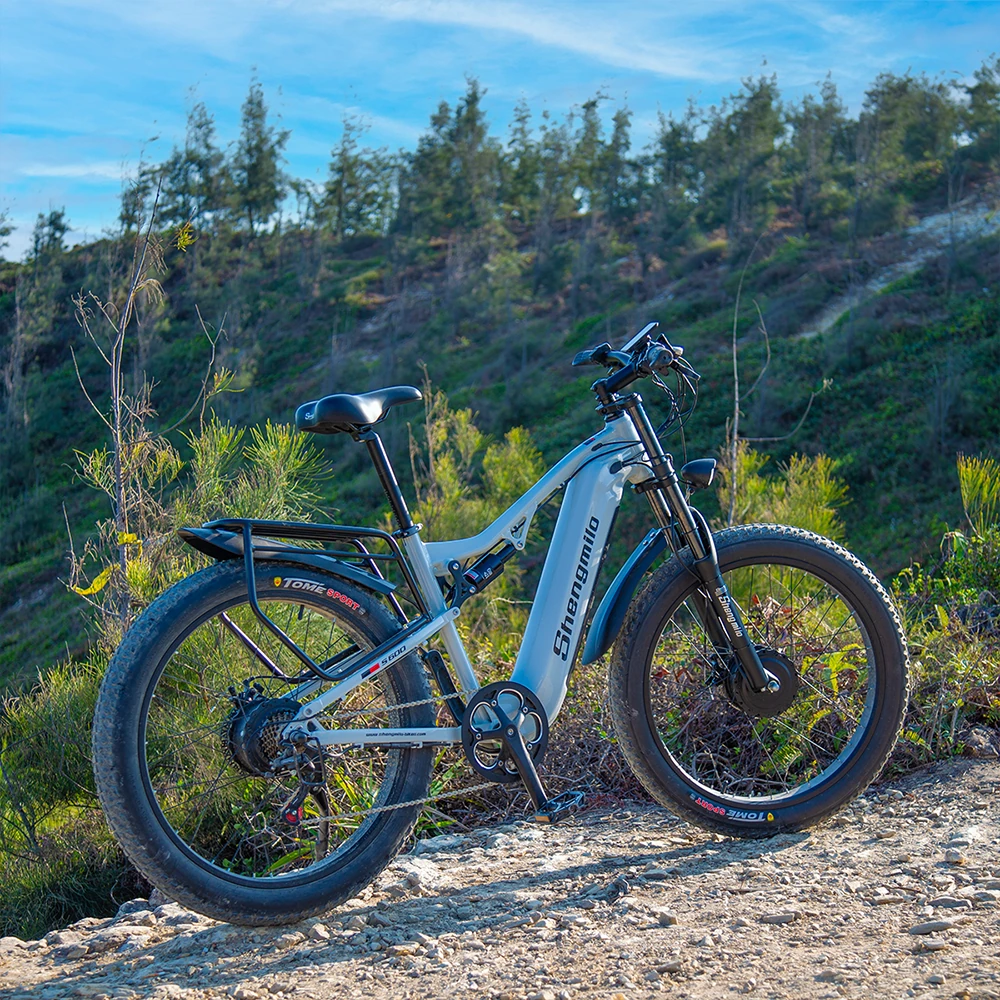

5. Range: Range is perhaps the most crucial factor for e-bike riders, particularly in vast and varied landscapes like Australia, where long-distance riding can be a necessity. For instance, the Shengmilo S600 features a 48V 17.5Ah battery (840Wh), providing a maximum range of up to 100 kilometers on a single charge when used optimally with the correct assist level and gear adjustments.

Australian Context: E-Bike Battery Considerations

Australia’s diverse terrain, from coastal cities like Sydney to rugged outback trails, requires e-bike batteries that can handle both urban and off-road conditions. The heat in many parts of Australia can also affect battery performance, making it essential to choose a battery with high thermal stability. Brands offering high-quality NMC or LFP cells are particularly suited to withstand Australia’s extreme temperatures and ensure the longevity of your battery.

Moreover, Australian road laws are increasingly supportive of electric bicycles, with various states offering incentives or subsidies for e-bike purchases. When purchasing a battery in Australia, it’s essential to ensure that it meets local regulations regarding safety standards, including those for battery charging and storage.

Conclusion

In summary, the battery is a crucial element that determines the performance and longevity of your electric bicycle. By understanding key terms like voltage, capacity, and the importance of the BMS, you’ll be better equipped to choose the right battery for your needs. Always consider factors like weight, battery composition, and range when making your decision. In Australia, with its vast and varied landscapes, selecting a battery that offers both durability and efficiency is key to enjoying your electric biking experience to the fullest.
